ZAvblue2 combines maximum airflow with a particularly compact design – ideal for high-volume applications with limited installation space.
Thanks to its enlarged air inlet, ZAvblue2 achieves particularly high airflow efficiency without requiring additional space. The biomimetic airflow function further optimizes flow control and enables up to 3 dB quieter operation compared to other fans with similar performance data.
Developed for realistic installation situations: ZAvblue2 saves energy costs and contributes to sustainability.
Exceptional benefits of ZAvblue2
Versatile
ZAvblue2 was developed to meet your requirements
Applications in data centers

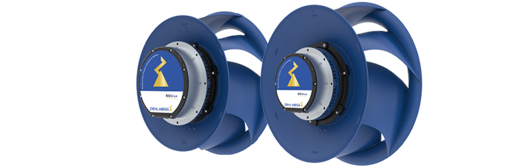

560, 630 mm
Areas of application
- Data centers and AHUs
- Optimized for use in CRAC systems
(computer room air conditioners)
Benefits of ZAvblue2
- Highly efficient with low operating costs
- Ideal for operating areas with high volume flow applications
- Available with Active PFC ECblue motors
Fact check

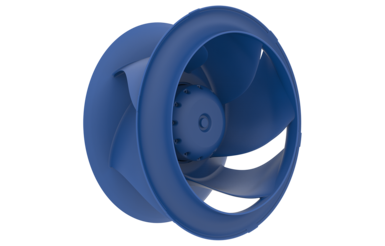

ZAvblue2 RH50D-ZID.GG.VR
ZAvblue2 overview

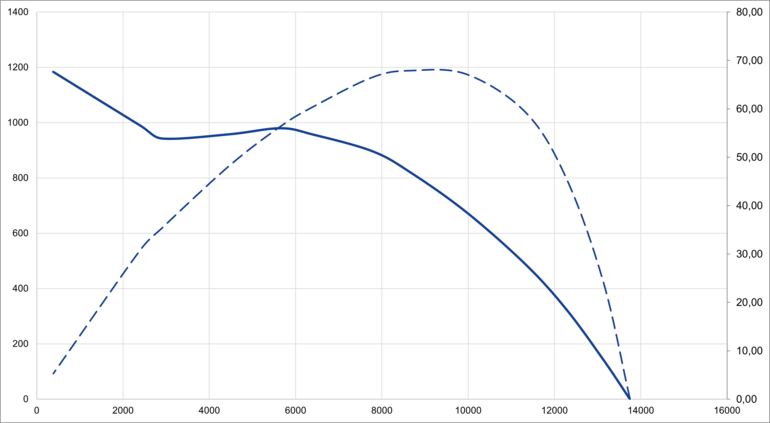

- Static system efficiency up to 70.1% (size 500: 67.9%)
- Low to medium pressures with focus on volume flow
- Main areas of application: Ventilation/cooling of data centers
- Special impeller design for optimum performance in confined installation conditions
- Bionic design approaches to minimize material usage with the help of the Mattheck radius
- Suitable for ECblue in sizes EC072, EC090, EC116, EC152
- Impeller material: High-performance composite material
- Available module designs: RH, GR spider (sizes 630, 355)
- Up to -3 dB lower noise level compared to the previous model ZAvblue
- Drop-in replacement possible
