Detail

Additional information

Technical data
Article no	118938

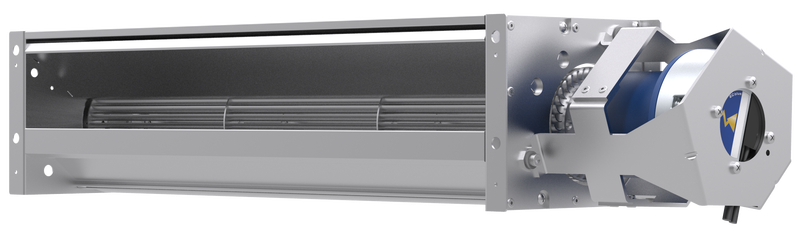

Type	QK08A-4IM.50.BF
*ErP 2015	nicht relev.(u.125W)
Fan design	Crossflow QK
Frequency	60 50
Air flow	1030	m³/h
Pressure	175	Pa
Motor technology	ECblue
Phase	1	~
Protection class	IP54
Size	80	mm
Voltage	230	V
Weight	4.50	kg

Characteristic curve	Speed min_-1	Duty point	Current A	Voltage V	Input power P(ed) W	Suction side sound power Level LwA5 db
I	3190	1	0.6	230	65	73
I	3200	2	1.1	230	120	77
I	2190	3	1.1	230	120	76
II	1970	4	0.8	230	85	73
II	2920	5	0.86	230	90	75
II	1720	6	0.56	230	55	69
III	2250	7	0.48	230	46	68
III	1360	8	0.32	230	30	63
III	2850	9	0.48	230	48	70
IV	1950	10	0.35	230	34	65
IV	1210	11	0.25	230	22	60

Electrical data

1~200-240V 50/60Hz P_ed170W 1.7-1.4A
3180 min^-1 70 °C

Technical data

Electrical connection: Connecting cable
Degree of protection: IP54
Motor protection: integrated active temperature management
Impeller made of aluminium
Housing unpainted, Side plates galvanised steel, casing profile aluminium, guide vane steel

Approvals: CE, UKCA, UL

ErP-data

Not subject to the regulations of ErP directive (P₁< 125 W)

Additional DoE and CT20 relevant product information:
Selected product is not governed by U.S. DOE and CT20 industrial fan and blower regulations.
