Clutch-driven fan

ZIEHL-ABEGG's clutch-driven fans are available in different steel grades - from mild steel to high-alloy stainless steel. The support plate, or trough, is available in square or rectangular formats, depending on the specifications of the plant. In modular design with mounted and adjustable inlet nozzle or as motor impeller with inlet nozzle loose. The installation depth of the support trough is freely selectable. Inside the fan is a high performance impeller with backward curved blades. Our clutch-driven fans are perfectly suited for a wide variety of applications, such as painting and extraction systems or drying technology.

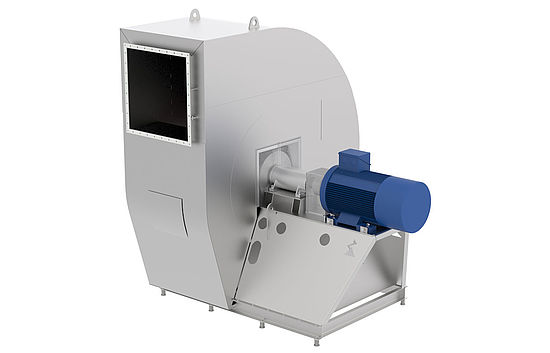

clutch-driven fan from ZIEHL-ABEGG process air fan with grey housing and blue motor frontal view 45 degrees rotated
Clutch-driven fan

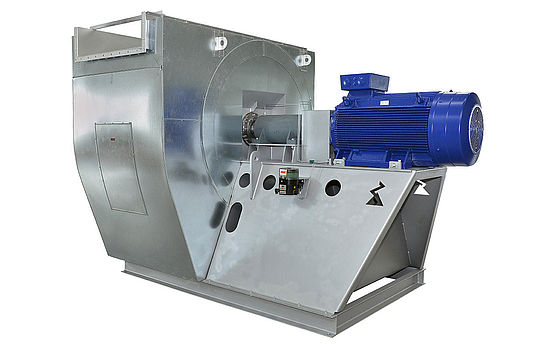

clutch-driven fan from ZIEHL-ABEGG process air fan with metal housing and blue motor frontal view 45 degrees rotated
Clutch-driven fan

Product specification:

  • Clutch-driven centrifugal fans with spiral housing, single-ended extracting, with monobloc mounting
  • Rugged version for industrial applications combined with highly efficient components, in unique compact design
  • Max. supply medium temperature: 500 °C
  • Max. instantaneous motor output: 710 kW


Properties & special features:

  • Monobloc mounting
  • Clutch
  • Shaft seal system
  • up to 400 kW Step1 as of 06/2015
  • up to 500 kW Step 2 as of 01/2016
  • up to 710 kW Step 3 as of 06/2016
  • Insulation 100 – 200 mm version
  • Maximum temperature: 350 °C as of 06/2015
  • Maximum temperature: 500 °C as of 01/2016
  • Static compression up to 40,000 Pa
  • Volume flow rate up to 500,000 m³/h

Paint Shops and Extraction System
